Lavagrigia

60x120xm / 23.6x47.2
Grip


Download catalogs

1. Color


2. Finish


3. Size

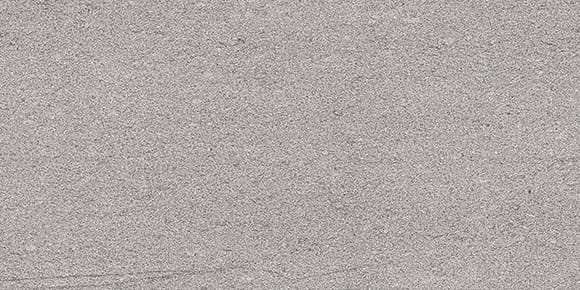

HD12F06

HD12F06

  • Color : Light Grey
  • Finish : Grip
  • Size : 60x120cm 23.6x47.2"

All website photos are for reference only, , the accuracy and completeness information please refer with actual products.

*Scroll left to right for the whole table
60x120cm
23.6x47.2"
60x60cm
23.6x23.6"
60x120cm
23.6x47.2"
EN14411 60x60cm
23.6x23.6"
EN14411
Water Absorption(%) ≦0.1 ≦0.5 ≦0.1 ≦0.5
Length ± 0.5 ± 2.0 ± 0.4 ± 2.0
Width ± 0.5 ± 2.0 ± 0.4 ± 2.0
Thickness ± 0.4 ± 0.5 ± 0.4 ± 0.5
Straightness of Sides ± 0.4 ± 1.5 ± 0.4 ± 1.5
Central Warpage +0.6~-0.4 ± 2.0 +0.6~-0.4 ± 2.0
Edge Curvature +0.5~-0.5 ± 2.0 +0.5~-0.5 ± 2.0
Warpage ± 1.0 ± 2.0 ± 0.8 ± 2.0
Rectangularity ± 1.0 ± 2.0 ± 0.8 ± 2.0
Breaking Strength Modulus of Rupture S ≧ 2,600 N R ≧ 40 N/mm2 S ≧ 1,300 N R ≧ 35 N/mm2 S ≧ 2,200 N R ≧ 38 N/mm2 S ≧ 1,300 N R ≧ 35 N/mm2
Thermal Shock Resistance Resistant Test methond available Resistant Test methond available
Resistance to Chemical Minimum GLA Minimum GB Minimum GLA Minimum GB
Glazed Crack Resistance Resistant Resistant Resistant Resistant
Mahs hardness - - - -
Frost Resistance Resistant Resistant Resistant Resistant
Stains Resistance Minimum class 5 Minimum class 3 Minimum class 5 Minimum class 3
*Scroll left to right for the whole table
60x120cm
23.6x47.2"
60x60cm
23.6x23.6"
Pcs Per M2 1.39 2.78
Pcs PerBox 2 4
Weight Per Box 45 34
Boxes Per PLT 40 32
Boxes Per EU PLT 36 28
